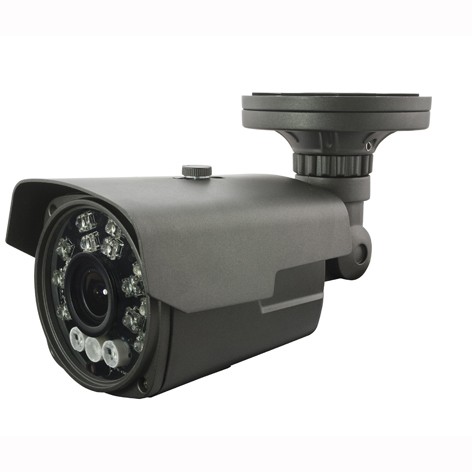

Model

SCHFG6120

Camera

Image Sensor

1/3″ 2Megapixel CMOS

Effective Pixels

1920(H)×1080(V)

Electronic Shutter

4/25s~1/45,000s

Video Frame Rate

25/30/50/60fps@1080P; 25/30/50/60fps@720P

Synchronization

Internal

Min. Illumination

0.01Lux@F1.2(AGC ON), 0Lux IR on

Video Output

1-channel BNC HDCVI high definition video output

Camera Features

Max. IR LEDs Length

300ft, Smart IR

Day/Night

Auto(ICR) / Color / B/W

Noise Reduction

3D

OSD Menu

Support coaxial control

Lens

Focal Length

5 -50 mm

General

Power Supply

DC12V±10%

Power Consumption

Max 10W

Working Environment

-20°C~+60°C / Less than 95%RH (no condensation)

Transmission Distance

Over 300m via 75-3 coaxial cable

Ingress Protection

IP66, IK10

Dimensions

225mm*130mm*105mm

Weight

1.5kg
