Model

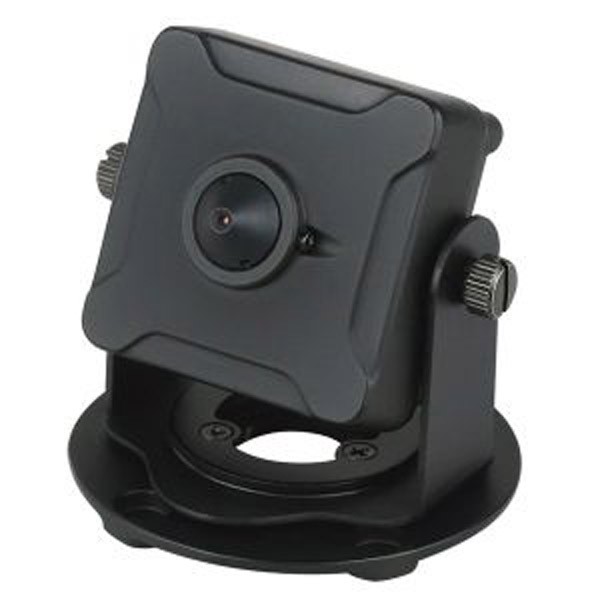

SCHDB7320

Camera

Image Sensor

1/2.8″ 2Megapixel CMOS

Effective Pixels

1920(H)×1080(V)

Electronic Shutter

1/60s~1/60,000s

Video Frame Rate

25/30fps@1080P, 25/30/50/60fps@720P

Synchronization

Internal

Min. Illumination

0.01Lux@F1.2(AGC ON)

Video Output

1-channel BNC HDCVI high definition video output/ CVBS 960H definition video output (Can switch)

Camera Features

Max. IR LEDs Length

N/A

Day/Night

Auto / Color / B/W

Noise Reduction

2D

OSD Menu

Support

Lens

Focal Length

3.7mm pinhole lens

General

Power Supply

DC12V±10%

Power Consumption

Max 8W

Working Environment

-20°C~+60°C / Less than 95%RH (no condensation)

Transmission Distance

Over 500m via 75-3 coaxial cable

Ingress Protection

N/A

Dimensions

42mm×42mm×10mm

Weight

0.15kg
