Details

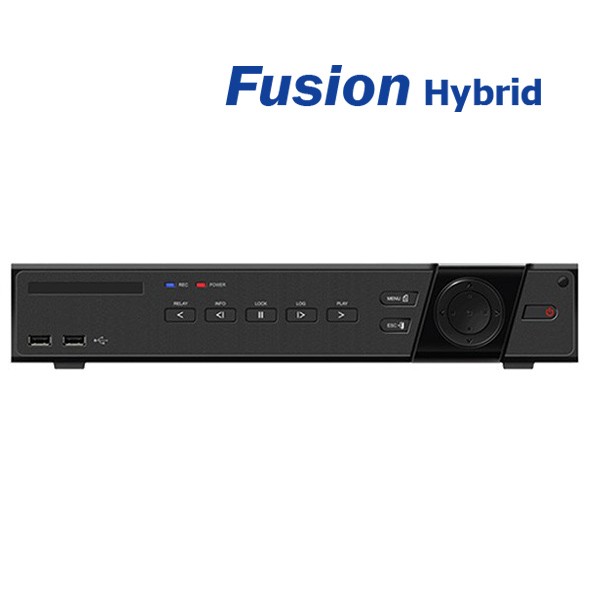

| Model | FKD-108S(8ch) |
| OS | Embedded Linux – Built in flash memory |
| Access | Front button, Mouse, Remocon, Network, Key controller |
| Hexaplex | Live monitoring, Recording, Playback,Backup, Network, Setup |
| Upgrade | USB2.0 Memory stick, Network |
| Video | |
| System | NTSC / PAL – Config switch |
| Input | 16, 8BNC |
| Output | 1 HDMI, 1 VGA, 1 BNC |
| Loop | N/A |
| Spot | 1 BNC – Multi-channel (16/9/4/1) |
| Audio | |
| Input | 16/8/4 RCA |
| Output | HDMI, RCA |
| Video Recording | |
| Compression | H.264 |
| Speed | Real-time(max. 30fps/ch) |
| Resolution | 1080P(1920×1080), 720P(1280×720), 960H (960×480/576) |
| Event | Sensor, Motion, Audio, Text |
| Bit Rate | Max 8Mbps/ch, Adjustable |
| Audio Recording | |
| Compression | G.711U |
| Audio Sampling Rate | 16KHz |
| Network | |
| Interface | Ethernet 10/100/1G |
| Speed | Max 720p 8fps/ch |
| Compression | H.264 |
| Resolution | Max. 1080x720P |
| Backup | |
| Interface | USB2.0, Network |
| Format | Video clip (Backup viewer), JPEG Still Image Log list, Setup data |
| Alarm | |
| Pre/Post-Alarm | 5sec ~5min |
| Alarm Action | E-mail, Channel Popup, Buzzer, Relay, PTZ Preset, Spot, Remote CMS, Front LED |
| Input / Output | 4/1, 4/1, 4/1 – NC/NO/EOL |
| Display | |
| HDMI | Full HD, XGA |
| VGA | Full HD, XGA |
| TV | SDTV(720×480/576) |
| Mode | 16/9/4/1/SEQ – LIVE, 16/9/4/1 – P.B |
| External Interface | |
| PTZ / Keyboard | 2 RS485 – Terminal Block |
| ATM / POS | RS232C – Terminal Block |
| Storage | |
| Primary | 2 HDD or 1 HDD + 1 eSATA |
| External | 1 eSATA |
| Features | |
| EOL Register(10K) | 4Ch |
| DDNS, DHCP, UPNP | Yes |
| CMS, VMS, RMS | Windows |
| Smart Phone (3G) | Android, iPhone, iPad |
| Mac Viewer | Apple Mac OS |
| General | |
| Power Supply | 12V/5A – Level 5 |
| Consumption | 60Watts |
| Dimension | 340 x 59 x 300 mm |
