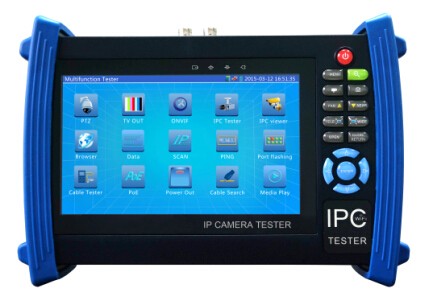

7" IP + Analog + TVI + AHD + CVI

•English and other languages optional
•Test both analog cctv camera and ip camera
•HD-CVI camera testing
•AHD camera testing
•HD-TVI camera testing
•7 inch LCD screen display, capacitive touch screen, 1024*600 resolution, support Resolution 1920 x 1080, 1080 x 720
•Display ONVIF IP camera image, ONVIF PTZ controller
•Support more than 40 customized IP cameras protocols
•Support video management software to view IP camera image
•Built-in WiFi to receive network image and data
•Network bandwidth testing
•FTP Server, Static IP address, DHCP, simultaneously test different segments´ IP cameras
•PoE 24W power supply to IP camera
•HDMI signal output , support 1080P
•DC12V 2A power output for camera
•USB 5V 2A power output to mobile phone
•Led Lamp, easy to operate at night
•Micro SD card moveable
•User-defined shortcut keys (F1 and F2)
•LCD screen brightness/contrast/color saturation adjustable
•Automatically adapts and displays the video format of NTSC/PAL
•Enhanced color bar generator, by receiving the video color bar to test the video channel whether transmit normally
•4x zoom, video image can be magnified to view the details, easy to use (only for analog video test)
•Video record and playback (only for analog video test)
•Snapshot and save the current image as JPG file in the SD card (only for analog video test)
•PING testing, test IP camera or network devices’ ethernet port whether work normally, and the IP address whether right
•Video signal level test
•PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement
•Cable scan, Send the specific signal, easy to find out the connected cable.
•IP address scan, quickly search the IP address for the connected IP camera and other network devices
•PoE voltage measurement, test the PoE switch’s voltage to IP cameras, wireless AP device and other PD devices
• Device Port flicker, easy to find the connected PoE switch port by sending special signals, the connected PoE port will flicker at special frequency.
•Link monitor, check the setting IP address whether occupied.
•PTZ address scan, search up the ID of PTZ camera.
•Network cable and Telephone cable testing, display the sequence of connection and the No. of the LAN cable
•Support RS232/RS485/RS422, rate 600 ～ 115200bps adjustable
•Multi-protocol. Supports more than thirty PTZ protocols. Such as PELCO-P, PELCO-D, SAMSUNG etc.
•PTZ protocol analysis, control protocol command displays to check RS485 transmission
•PTZ control. Pan/tilt the PTZ unit, zooms in/out the lens, adjusts the focus, aperture and sets and the preset position
•Audio input test, test the audio signal from pickup devices
•Lithium Ion Polymer Battery .The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environmental protection. It can last 17 hours for normal use after charging for 7 hours
