| Model |

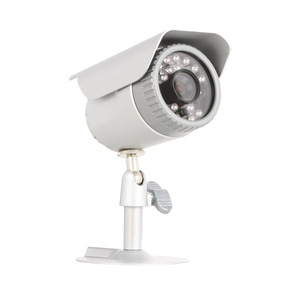

EZIC-IBRF20 |
Product Features |
H.264 / MJPEG Network Camera |
| Dual Stream |
| Motion Triggered Alarm |
| Multi Language GUI support |
| ONVIF Compliant |
| 1/2.8" Sony Exmor CMOS Sensor |
| On The Fly supported @ GOP/Bitrate/FPS stetting |
| 2D DNR. (Depends on CODEC configuration) |
| DPC(Defective Pixel Correction) on the fly |
| True Day & Night |
| Analog Hybrid Output(Installation Only) |
CAMERA |
Image Sensor |
1/2.8" Sony Exmor CMOS Sensor |
Max. Resolution |
1920 x 1080 |
Effective Pixels |
1984(H) x 1225(V) |
Effective Image Size |
5.56mm(H) x 3.43mm(V), 6.53mm(Diagonal) |
White Balance |
ATW / MANUAL(PRESET) |
Electronic Zoom |
2 ~ 10x(Client Software) |
AGC |
Yes |
BLC(Back Light Compensation) |
Yes |
Iris |
Fixed Iris |
Shutter Speed |
1/4~1/2000 |
Slow Shutter |
2x |
Lens |
Fixed lens. f=4 mm in default (Option TBD) |
Day & Night |
Removable IR Cut Filter |
S/N ratio |
48.8 dB or more |
Min. illumination |
Color: 0.63 lux(F3.5, 50IRE) |
| B/W: 0 lux(IR LED ON) |
ANALOG (Installation Only) |
Video Signal |
NTSC/PAL selectable |
Monitor Output |
Composite Output(BNC), 75 ohm 1Vpp |
Scanning Frequency |
NTSC: (H) 15.734 kHz, (V) 59.94 Hz |
| PAL: (H) 15.625 kHz, (V) 50 Hz |
AUDIO |
In/Out |
- |
| - |
CODEC |
- |
NETWORK |
Network |
10BASE-T, 100BASE-TX, RJ45 |
Image Compression |
H.264 : High Profile |
| MJPEG Image quality: 100 Steps |
Resolution |
1920 x 1080(Full HD), 1280 x 1024(SXGA), |
| 1024x768(XGA), 1280 x 720(720p) |
| 640 x 480(VGA), 320 x 240(QVGA) |
| 704x480/576(4CIF), 352x240/288(CIF) |
Protocol |
IPv4, HTTP, HTTPS, SMTP, UPnP, DNS |
| RTSP, DDNS, RTP, TCP, UDP, RTCP, DHCP, ARP, NTP |
Frame Rate |
1 fps ~ 25 fps / 1 fps ~ 30 fps |
Web Browser |
Internet Explorer 7.0 or above |
| Firefox |
| Chrome |
| Smart Phone(iOS, Android) |
Security |
Password Protection, HTTPS |
SDK(API) |
HTML based API |
VMD(Video Motion Detection) |
User set 4 ROI(Region Of Interest) |
| 10 Step Sensitivity |
Alarm Trigger |
VMD |
Alarm Event |
E-mail notification, FTP transfer, Video streaming with alarm status @ V2.0 |
POWER |
Power Source |
DC: Not supported |
| AC: Not supported |
| PoE: IEEE 802.3af compliant |
Power Consumption |
TBD |
Heater |
- |
OTHER SPECIFICATIONS |
Micro SD Card |
- |
External I/O Terminals |
- |
| - |
IR Number / Distance |
10M |
Ambient Temperature |
-10°C ~ 50°C(14°F~122°F) |
Ambient Humidity |
less than 90%, Non-condensing |
Materials |
Aluminum Diecasting |
Weight |
280g |
Dimensions(W x H x D) |
57.9(Φ)x85(L) |
