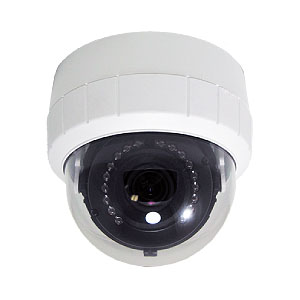

| EZIC-IDRM20 |
-H.264 & MJPEG HD Network Camera
-Dual Stream
-18 IR LEDs (55FT)
-2MP (1080p) @ 30FPS
-Triple Power: 12VDC, 24VAC, PoE
-Analog Hybrid Output
-Motion Triggered Alarm
-Multi Language GUI Support
-True Day & Night
-ONVIF Compliant
-3.3~12mm Motorized Zoom
-2D/3D DNR
-Audio In/Out |
  |
|
|
|
|
| Model |
EZIC-IDRM20 |
| CAMERA |
| Image Sensor |
1/2.8" Sony IMX-122 CMOS Sensor |
| Max. Resolution |
1920 x 1080 |
| Effective Pixels |
1984(H) x 1225(V) |
| Effective Image Size |
5.56mm(H) x 3.43mm(V), 6.53mm(Diagonal) |
| White Balance |
ATW / MANUAL(PRESET) |
| Electronic Zoom |
2 ~ 10x(Client Software) |
| AGC |
Yes |
| BLC(Backlight compensation) |
Yes |
| Iris |
Motorized Iris / MANUAL / AES |
| Shutter Speed |
1/4, 1/10, 1/12.5, 1/15, 1/20, 1/25, 1/30, 1/50, 1/60, 1/100, 1/120,
1/240, 1/480, 1/960, 1/1024, 1/2000s |
| Slow Shutter |
2X |
| Lens Mount |
TAMRON Motorized Zoom and Focus lens, f=3~9mm, F1.2~2.1 |
| Day & Night |
Removable IR Cut Filter |
| S/N ratio |
50 dB or more(TBD) |
| ANALOG (Installation Only) |
| Video Signal |
NTSC/PAL selectable |
| Monitor Output |
Composite Output(BNC), 75 ohm 1Vpp |
| Scanning Frequency |
NTSC: (H) 15.734 kHz, (V) 59.94 Hz
PAL: (H) 15.625 kHz, (V) 50 Hz |
| NETWORK |
| Network |
10BASE-T, 100BASE-TX, RJ45 |
| Image Compression |
H.264 : Main Profile |
| MJPEG : Image quality: 100 Steps(Q value) |
| Resolution |
1920 x 1080(Full HD), 1280 x 1024(SXGA) |
| 1024 x 768(XGA), 1280 x 720(720p) |
| 640 x 480(VGA), 320 x 240(QVGA) |
| 704 x 480/576(4CIF), 352 x 240/288(CIF) |
| Protocol |
IIPv4, HTTP,, UPnP, DNS, RTSP, DDNS, RTP, TCP, UDP, RTCP, DHCP, ARP, IGMP, ICMP, SMTP, NTP, HTTPS, IPv6 @ V2.0 |
| Frame Rate |
1 fps ~ 25 fps / 1 fps ~ 30 fps(TBD) |
| Web Browser |
Internet Explorer 7.0 or above, Firefox, Chrome, PDA/Smart
phone |
| Security |
Password Protection, HTTPS @ V2.0 |
| SDK(API) |
HTML based API |
| VMD(Video Motion Detection) |
User set 4 ROI(Region Of Interest) |
| Alarm Trigger |
VMD, External Alarm Input |
| Alarm Event |
E-mail notification, FTP transfer, Video streaming with alarm status
Pre Alarm @ V2.0 |
| AUDIO |
| In/Out |
Line in, Line out External Amplifier is needed |
| CODEC |
G.711 / 8K sampling(TBD) |
| POWER |
| Power Source |
DC12V 1A / 24VAC(50Hz/60Hz) 500mA
PoE(IEEE 802.3af compliant) |
| OTHER SPECIFICATIONS |
| External I/O Terminals |
Alarm In x1, Alarm Out x1, Audio In x1, Audio Out x1 |
| Ambient Temperature |
0°C ~ 40°C(32°F~104°F) |
| Ambient Humidity |
less than 90%, Non- condensing |
| Materials |
Poly Carbonate 2(PC2) |
|
|
|
|
|
