| Stand Alone DVR > Fusion Series |
|
|

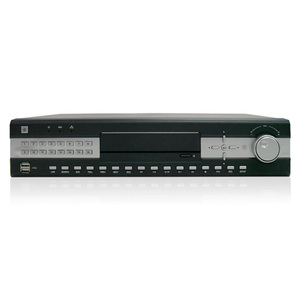

| FHD-516(16CH) |
- Available in 4, 8, and 16 channel models
- Accepts ANY combination of analog (SD), 960H, and HD-SDI cameras (720p & 1080p)
- Realtime recording and playback across ALL channels simultaneously
- Advanced mirroring (dual recording) capabilities
- Extended storage option via eSATA
- Separate network streaming quality, resolution, and FPS
- User privilege management, free DDNS support
- Web-based remote setup & viewer, free CMS (Central Management Software)
- Supports mobile device and tablet viewing (iOS & Android)
|
  |
|
|
|
|
| Specification |
FHD-204 |
FHD-208 |
FHD-216 |
FHD-516 |
| OPERATION MODE |
Quadruplex |
| Live Display Speed(NTSC/PAL) |
Realtime Display(480/400 fps) |
| Recording |
720x480(576) |
120/100 fps |
240/200fps |
480/400fps |
480/400fps |
| 960x480(576) |
120/100 fps |
240/200fps |
480/400fps |
480/400fps |
| 720p |
120/100 fps |
240/200fps |
480/400fps |
480/400fps |
| 1080p |
120/100 fps |
240/200fps |
480/480fps
(1080i mode) |
480/400fps |
| Network |
Individual Streaming |
Resolution Selectable (1/4 size ~ full size) |
| Video Input |
No of BNC |
4ch |
8ch |
16ch |
16ch |
| Video Output |
VGA |
1 (up to 1920X1080) |
| HDMI |
1(up to 1920X1080) |
| CVBS(BNC) |
Dual Monitor Output(NTSC/PAL) |
| Screen Division |
Live & Playback Mode |
1,4,9,16 |
| Audio |
In/Out |
4 line in (RCA)/1 line out (RCA) & HDMI |
| Alarm |
In / Out |
4 In/ 1 Out(Relay) |
| Alarm Out Control |
User Configurable Relay output |
| Storage |
Interface |
SATA2(1.5Gbps) |
| No. of HDD(Internal) |
2 |
2 |
2 |
5 |
| eSATA |
N/A |
1 (eSATA MUX 5 additioanl HDD support) |
| Archive |
Backup Device |
USB Device (HDD, Thumb Drive) & Network |
| AVI |
O |
| USB Port |
2 Ports at Front |
| Motion Area |
32 x 24 |
| Network |
LAN (TCP/IP Ethernet, RJ45), DHCP, Dynamic IP, DDNS, uPNP, HTTP, NTP |
| Ethernet Port |
10M/100M/ |
10M/100M/1000M |
| Power ( Adaptor) |
12V/3A |
12V/5A |
12V/5A |
12V/10A |
| Remote SW's |
RMS/ Web / Mobile SW |
| Case |
1.5U |
1.5U |
1.5U |
2U |
|
|
|
|
|
