| Stand Alone DVR > Premium Series |
|
|

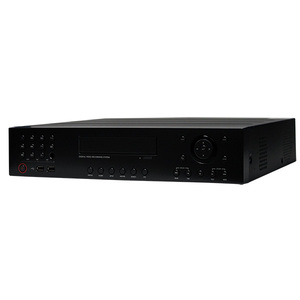

| PM3-16H |
- Up to 16 channels of 960H camera video can be displayed
at 480 fps / 400 fps in real time
- Up to 16 channels of 960H camera videos can be saved
at maximum 480 (NTSC) / 400 (PAL) fps.
- Simultaneous recording and playback of maximum 16 channels
(at 120 fps @ 960H)
- Supports H.264 HP (High Profile) CODEC
- Auto alarm feature with self-diagnostics on the system
(HDD S.M.A.R.T, system temperature, network error, FAN error, etc.)
- Supports dual streaming for remote access service
- Supports HDD extension (eSATA)
- Various search methods (time, event, bookmark and thumbnail)
- Mass storage backup via USB port or FTP server
- Supports remote access and search using web browser
- Dedicated smart phone applications that can be used
with iPhone and iPad or on Android OS
- 1080p Full HD GUI
|
  |
|
|
|
|
| CHANNEL |
8CH |
16CH |
| VIDEO
|
INPUT SIGNAL |
NTSC/PAL |
NTSC/PAL |
| MAIN MONITOR |
HDMI / VGA |
HDMI / VGA |
| SPOT OUT |
Digital 1CH/4CH (1Vpp, 75Ohm) x2,
Sub monitor(Digital) |
Digital 1CH/4CH (1Vpp, 75Ohm) x4,
Sub monitor(Digital) |
| LOOP THROUGH |
8CH(1Vpp, 75Ohm) |
16CH(1Vpp, 75Ohm) |
| MOTION DETECTION |
YES |
YES |
| AUDIO |
INPUT SIGNAL |
8CH(10KOhm, 2.8Vpp) |
16CH(10KOhm, 2.8Vpp) |
| OUTPUT SIGNAL |
1CH(600Ohm, 2.8Vpp) |
2CH(600Ohm, 2.8Vpp) |
| CODEC |
G.711 |
G.711 |
| RECORDING |
CODEC |
H.264 |
H.264 |
| REC. RATE |
Up to 240FPS/200FPS @ 960H
Up to 240FPS/200FPS @ D1 |
Up to 480FPS/400FPS @ 960H
Up to 480FPS/400FPS @ D1 |
| Up to 240FPS/200FPS @ 2CIF |
Up to 480FPS/400FPS @ 2CIF |
| Up to 240FPS/200FPS @ CIF |
Up to 480FPS/400FPS @ CIF |
| REC. RESOLUTION |
CIF, 2CIF, D1, 960H |
CIF, 2CIF, D1, 960H |
|
ALRM I/O |
ALARM INPUT |
10CH(8CH+2CH), Pulled up to 5V via
10KOhm |
18CH(16CH+2CH), Pulled up to 5V via
10KOhm |
| ALARM OUT |
4CH, RELAY(5V, 35mA) |
8CH, RELAY(5V, 35mA) |
|
STORAGE |
INTERNAL HDD |
MAX 5EA, Up to 2TB HDD Disk |
MAX 5EA, Up to 2TB HDD Disk |
| EXTERNAL STORAGE |
eSATA, NAS(FTP Server, for Backup) |
eSATA, NAS(FTP Server, for Backup) |
| INTERNAL ODD |
1EA(DVD-RW) with HDD 2EA |
1EA(DVD-RW) with HDD 2EA |
| INTERFACES |
USB |
3 ports(2Front + 1 Rear) |
3 ports(2Front + 1 Rear) |
| RS-485 |
2 |
2 |
| RS-232 |
1 |
1 |
| LAN |
1 (LAN) + 1 (WAN) - 10/100/1000Mbps |
1 (LAN) + 1 (WAN) - 10/100/1000Mbps |
| REMOTE CONTROL |
YES |
YES |
| ETC |
SIGNAL SWITCH |
NTSC/PAL |
NTSC/PAL |
| WATCHDOG |
YES |
YES |
| COOLING FAN |
Max 2x 60mm |
Max 2x 60mm |
| POWER |
POWER SUPPLY |
SMPS, 100W, 100~220VAC, 50~60Hz |
SMPS, 100W, 100~220VAC, 50~60Hz |
| POWER CONSUMPTION |
21W max, without HDD |
21W max, without HDD |
| ENVIRONMENT |
TEMPERATURE |
0 ° C ~ 40 ° C(32 ° F~104 ° F) |
0 ° C ~ 40 ° C(32 ° F~104 ° F) |
| HUMIDITY |
10 ~ 90% NC |
10 ~ 90% NC |
| DIMENSION (WxDxH) |
430 x 367 x 88.4 |
430 x 367 x 88.4 |
|
|
|
|
|
