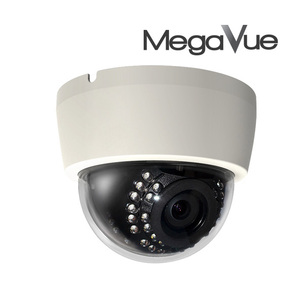

| SCDR30-V0CW |
- MegaVue 2MP, 1080P, HD-SDI
- Built-in 2.8 ~ 12mm Varifocal lens with auto iris
- 30 IR Leds
- DWDR, ICR, 3DNR, Sense-up, OSD
- 3-Axis camera mount
- 12V DC
|
  |
|
|
|
|
| Model |
SCDR30-V0CW |
| IMAGE SENSOR |
1/2.9" 2.1MEGA PIXEL SONY EXMOR CMOS |
| EFFECTIVE PIXEL |
1936 (H) x 1097 (V) |
| SCANNING SYSTEM |
PROGRESSIVE |
| VIDEO OUTPUT |
1 x HD-SDI,1 x BNC, 75 Ω COMPOSITE |
| S/N (Y Signal) |
MORE THAN 50dB |
| Min. ILLUMINATION |
0.02LUX (SENS-UP x30) |
| IRIS ADJUSTMENT |
DC / MANUAL |
| LENS |
2.8~12mm MEGAPIXEL LENS (ICR TYPE) |
| ELECTRONIC SHUTTER |
OFF/AUTO(1/30~1/50,000)FLK MANUAL(x2~x30) |
| OSD LANGUAGE |
ENG, JPN, CHN1, CHN2, KOR, GER, FRA, ITA, SPA, POL, RUS, POR, NED, TUR, HEB, ARB |
| BACKLIGHT COMPENSATION |
OFF /BLC / HSBLC |
| WHITE BALANCE |
AWC→SET KEY / MANUAL- BLUE,RED(1~100) / INDOOR / OUTDOOR |
| DAY & NIGHT |
Auto / EXT / B/W(IR SMART) / COLOR |
| PRIVACY MASKING |
On / Off (Programmable 8 zones) |
| NOISE REDUCTION |
2DNR/3DNR LEVEL(0~100) Adjustment / SMART NR |
| ACCE |
OFF / LOW / MIDDLE / HIGH |
| DEFOG |
Low / Middle / High / Off |
| DIGITAL ZOOM |
OFF/ON (x2 ~ x62) / OFF |
| SENS-UP |
OFF / x2~x30 |
| MOTION DETECTION |
3 AREA |
| DIGIAL EFFECT |
OFF / V-FLIP / MIRROR / ROTATE |
| DEFECT |
LIVE DPC (ON, OFF, AUTO) |
| COMMUNICATION |
RS 485 (OPTION) |
| IR LED |
30pcs |
| INPUT VOLTAGE |
DC 12V(±10%) |
| POWER CONSUMPTION |
DC IR OFF : 200mA(±10%) / IR ON : 500mA(±10%) |
| OPERATION TEMP / HUM |
-10° C~ +50° C / MAX 90% RH |
| STORAGE TEMP / HUM |
-20° C ~ +60° C / MAX 90% RH |
|
|
|
|
|
