| SPECIFICATION |
| Model |

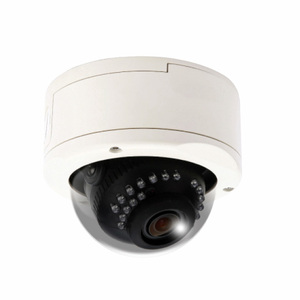

EVR-V555 |
| Image Sensor |
1/3" Super HAD II CCD |
| Total Pixels |
1020(H) x 508(V) |
| Effective Pixels |
976(H) x 494(V) |
| Scanning System |
2 : 1 Interlace |
| Synchronization |
Internal / Line Lock |
| Scanning Frequency |
Horizontal : 15,734KHz / Vertical : 59.94Hz |
| Horizontal Resolution |
750 TV Lines |
| Min. Illumination |
color: 0.1Lux(50IRE) / 0.06Lux(15IRE)
B/W : 0.08Lux(50IRE) / 0.006Lux(15IRE)
|
| S / N Ratio (Y signal) |
50dB |
| Video Output |
VBS 1.0Vp-p / 75 Ohm |
| LENS |
| Focal Length |
2.8 ~ 12.0mm Varifocal Lens |
| Max. Aperture Ratio |
1 : 1.2 (Wide) ~ 2.2 (Tele) |
| Angle Field of View |
Horizontal : 102(Wide) ~ 73 (Tele) Deg |
| OPERATIONAL |
| OSD |
Multi-language support |
| Camera No/ ID |
On / Off ( Max. 256 No. 8ea ID / 1 Line) |
| Flickerless |
On / Off |
| High Speed Shutter |
1/ 60(1/50) ~ 1/20Ksec |
| Auto Gain Control |
Level Setting (0-20) |
| Day & Night |
Auto / Day / Night / Ext 1.2 |
| White Balance |
ATW / AWC / Manual |
| 2D DNR |
Off/ Low / Middle / High (Adaptive 2D) |
| Defog Funtion/ D- WDR |
Auto / Manual ( Low / Mid / High ) |
| ETC. Function |
Sharpness, Reverse(H), Shade |
| HLC / BLC |
Low / Mid / High |
| Motion Detection |
4 Area(On/ Off, position, Sensitivity) |
| Privacy Masking |
4 Area(On/ Off, color, Position) |
| Color Gain |
Manual(0-20) |
| Gamma(r) |
0.4-0.65 |
| ENVIRONMENTAL |
| Operating Temperature |
-10 °C ~ +50 ° C |
| Storage Temp/ Humidity |
Less than 90 ° |
| MECHANICAL |
| IR LEDs |
24 IR LEDs |
| Dimensions |
136(W ) x 111(H)mm |
| Weight |
1.9lbs.(875g) |
| ELECTRICAL |
| Power Source |
12V DC / 24V AC |
| Power Consumption |
Less than 700mA |
