| Model |

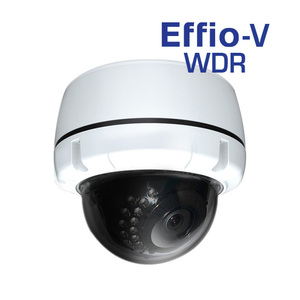

VKR-V455 |
| IMAGE SENSOR |
1/3" 960H Double Density IT CCD |
| EFFECTIVE PIXEL |
976(H) x 494(V) |
| SCANNING SYSTEM |
2:1 Interlace |
| SYNCHRONIZATION |
Internal |
| HORIZONTAL RESOLUTION |
750TV Lines |
| VIDEO OUTPUT |
COMPOSITE (1.0Vp-p/75Ohm) |
| S/N (Y Signal) |
52dB (AGC off) |
| LENS |
2.8~12mm DC AUTO IRIS VARIFOCAL LENS (ICR Type) |
| ELECTRONIC SHUTTER |
1/60 ~ 120,000sec |
| SCENE SELECT |
1/60 ~ 120,000sec |
| WDR |
LEVEL Adjustment |
| BACKLIGHT COMPENSATION |
BLC / HSBLC / OFF |
| WHITE BALANCE |
ATW(1,800K ~ 10,500K)/PUHS/USER1,2/MANUA L/PUSH LOCK |
| DAY & NIGHT |
DAY / AUTO1 / AUTO2 / NIGHT |
| PRIVACY MASKING |
ON / OFF (Programmable 15 zones) |
| DNR |
2DNR+3DNR(LEVEL Adjustment) |
| SMART IR |
LEVEL Adjustment |
| SENS UP |
Auto |
| MOTION |
4 REGIONAL MD |
| DIGITAL EFFECT |
OFF / V-FLIP / MIRROR / ROTATE |
| IR LED |
36 IR Leds
|
| INPUT VOLTAGE |
DC 12V(±10%) / AC 24V DUAL VOLTAGE |
|
HEATER OPERATION SPECIFICATION |
INTERNAL OPERATING TEMPERATURE OFF : 20° / ON : -20° |
| POWER CONSUMPTION |
HEATER OFF DC IR OFF : 150mA(±10%) / IR ON : 370mA (Max)
HEATER OFF AC IR OFF : 230mA(±10%) / IR ON : 410mA (Max)
HEATER ON DC IR OFF : 270mA(±10%) / IR ON : 490mA (Max)
HEATER ON AC IR OFF : 360mA(±10%) / IR ON : 510mA (Max)
|
| OPERATION TEMP / HUM |
-10° C~ +50° C / MAX 90% RH |
| STORAGE TEMP / HUM |
-20° C ~ +60° C / MAX 90% RH |
