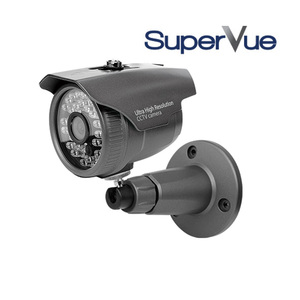

- SuperVue 960H CCD
- Ultra High Resolution 700TVL
- Built-in 3.6mm Fixed lens
- 30 IR Leds
- IP68
- 12V DC
Model
BSR30-F301
IMAGE SENSOR
1/3" 960H IT CCD
EFFECTIVE PIXEL
976(H) x 494(V)
SCANNING SYSTEM
2:1 Interlace
SYNCHRONIZATION
Internal
HORIZONTAL RESOLUTION
700TV Lines(MAX)
VIDEO OUTPUT
COMPOSITE (1.0Vp-p/75Ohm)
S/N (Y Signal)
52dB (AGC off)
LENS
3.6mm FIXED LENS
ELECTRONIC SHUTTER
1/60 ~ 120,000sec
BACKLIGHT COMPENSATION
OFF
WHITE BALANCE
ATW
DNR
ON
SMART IR
ON
IR LED
30PCS
INPUT VOLTAGE
DC 12V(±10%)
POWER CONSUMPTION
IR OFF : 80mA(±10%) / IR ON : 300mA(±10%)
OPERATION TEMP / HUM
-10° C~ +50° C / MAX 90% RH
STORAGE TEMP / HUM
-20° C ~ +60° C / MAX 90% RH
