| Cameras > Dome |
|
|
|
|
|
|
| Model |

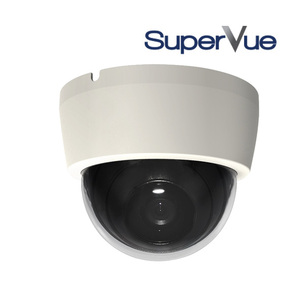

DSN-F301 |
| IMAGE SENSOR |
1/3" 960H IT CCD |
| EFFECTIVE PIXEL |
976(H) x 494(V) |
| SCANNING SYSTEM |
2:1 Interlace |
| SYNCHRONIZATION |
Internal |
| HORIZONTAL RESOLUTION |
700TV Lines |
| VIDEO OUTPUT |
COMPOSITE (1.0Vp-p/75Ohm) |
| S/N (Y Signal) |
52dB (AGC off) |
| LENS |
3.6mm FIXED LENS |
| ELECTRONIC SHUTTER |
1/60 ~ 120,000sec |
| BACKLIGHT COMPENSATION |
OFF |
| WHITE BALANCE |
ATW |
| DAY & NIGHT |
AUTO |
| PRIVACY MASKING |
- |
| DNR |
AUTO |
| SMART IR |
ON |
| MOTION |
OFF |
| DEFECT DET |
OFF |
| INPUT VOLTAGE |
DC 12V(±10%) |
| POWER CONSUMPTION |
IR OFF : 80mA(±10%) |
| OPERATION TEMP / HUM |
-10° C~ +50° C / MAX 90% RH |
| STORAGE TEMP / HUM |
-20° C ~ +60° C / MAX 90% RH |
|
|
|
|
|
