| Cameras > Dome/Vandal IR |
|
|

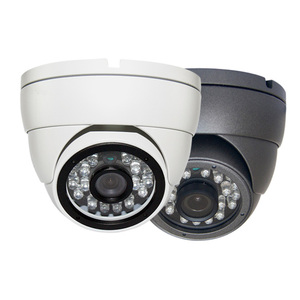

| ESR30-F901 |
- Aurora6 DSP, 960H , 700TVL
- Smart 24IR (80ft)
- 3.6MM Lens
- IP 68
-DC 12V, 70Dome size
|
  |
|
|
|
|
|
ITEM |
ESR30-F901 |
IP Rating |
IP65 |
Type |
Colour/Monochrome |
Signal System |
NTSC/PAL |
Pick Up Device |
1/3" 960H CCD |
Picture Elements |
NTSC:1020Hx508; PAL:1020Hx596V |
Resolution |
700 TVL |
Min Illumination |
0Lux with IR LED 24 pieces |
Vertical Frequency |
NTSC:60Hz PAL:50Hz |
Horizontal Frequency |
NTSC:15.734KHz PAL:15.625KHz |
Clock Frequency |
NTSC/ PAL:36MHz |
Scanning System |
2:1 Interlace |
S/N Ratio |
52dB |
Electronic Shutter |
NTSC:1/60-1/100,000s;PAL:1/50-1/100,000s |
Lens |
3.6mm Board Lens |
White Balance |
ATW |
Back Light Compensation |
OFF |
Auto Gain Control |
ON |
< | IR SMART |
ON |
GAMMA |
0.45 |
Video Out-put |
1V p-p,75Ω |
Power Supply |
DC12V ±
10% |
Current Consumption |
260mA |
IR Effect Distance |
15m (49.2ft) (Outdoor) |
Dimension |
Ø93x 75mm (3.66”x2.95”) |
Weight |
330g (11.64oz) |
Storage Temperature |
-30~+60°C (-22~+140°F) |
Operating Temperature |
-30~+40°C (-22~+104°F) |
|
|
|
|
|
