| SPECIFICATION |
| Model |

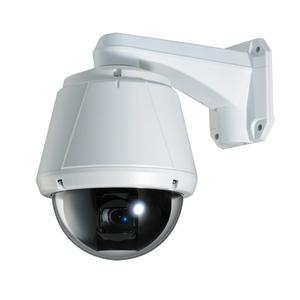

EPT-27CN-W/C |
| Imaging Device |
Sony 1/4" Super HAD Color CCD |
| Effective Pixels |
380K Pixels [768(H) x 494(V)] |
| Horizontal Resolution |
550 TV Lines(Color) / 680 TV Lines(B/W) |
| Min. Illumination | 0.7 Lux (Color) / 0.06 Lux (B/W) / 50 IRE, F1.6 / DSS Off |
| S/N Ratio | 50dB (AGC Off) |
| LENS |
| Zoom Ratio |
X27 Optical Zoom and X12 Digital Zoom |
| Focal Length |
f=3.5 ~ 94.5 mm / F1.6 ~ 2.9 |
| Angle Field of View (H) |
H : 55.5° (Wide) ~ 2.24° (Tele) / V : 42.5° (Wide) ~ 1.79° (Tele) |
| Focus |
Auto / Manual / Semi-Auto |
| MIN. Illuminance |
0.4 Lux (Color) / 0.02 Lux (B/W) / 50 IRE, F1.6 / DSS Off |
| Zoom Movement Speed |
1.8 sec. (Wide to Tele) |
| Iris Control |
Auto / Manual |
| PAN / TILT |
| Range |
Pan : 360° (Endless) / Tilt : 90° |
| Pan / Tilt Speed |
Preset : 360° / sec
Manual : 0.05° ~ 360° / sec (Zoom Proportional)
Swing : 1° ~ 180° / sec |
| Preset Positions |
127 Presets with Labels / Independent Preset Parameter Setup |
| Pattern |
4 Patterns (Approx. 5 Minutes for Each Pattern) |
| Swing |
8 Swings |
| Group |
8 Groups (MAX. 20 Actions with The Combination of Preset, Pattern and Swing / 1 Group) |
| Shutter Speed |
x256 ~ 1/120000 sec |
| Other Functions |
Auto Flip, Auto Parking, Power-up Action & etc. |
| OPERATIONAL |
| On Screen Display |
English On / Off |
| SSNR |
Low / Middle / High / Off |
| Flickerless |
Selectable |
| Day & Night |
Auto / Day / Night (IR Cut Filter) |
| BLC |
WDR / BLC / HLC / Off |
| Image Stabilization |
On / Off |
| Privacy Masking |
8 Masks with Spherical Coordinates |
| AGC |
Low / Middle / High / Manual / Off |
| White Balance |
Auto / Manual (Red & Blue Gain Adjustable, 1,800° K ~ 10,500° K) |
| Communication |
RS-485 |
| Protocol |
Pelco-D, Pelco-P Selectable |
| ENVIRONMENTAL |
| Operating Temperature |
-30° C ~ 50° C / -22° F ~ 122° F |
| MECHANICAL |
| Dimension (mm) |
Housing : 192(Ø) x 193.5(H) mm / 7.6" (Ø) x 7.6"(H)
Dome : Ø150 mm / Ø5.9" |
| Weight |
Approx. 3.5 Kg / 7.7 lbs (With Bracket) |
| Material |
Dome : Poly Carbonate / Housing : Aluminum |
| ELECTRICAL |
| Sensor In/Out |
3 Inputs (Photo Coupler Type) / 1 Output (Relay Type) |
| Power Consumption |
AC 24V / 1.5A |
| Network |
Optional / IP Addressable with H.264 /
DC 12V Model Only / Additional 0.5A required. |
