| DWL-KIT |

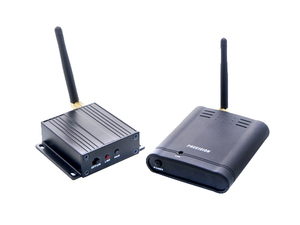

| upto 300ft Range Digital Wireless Kit, 2.4Ghz, Transmeter + Receiver with power supply |
  |
|
|
|
|
| SPECIFICATION |
| Model |
DWL-KIT |
| TRANSMITTER |
| Transmit Frequency |
2.400GHz – 2.4835GHz |
| Image Processor |
MPEG 4 encode/decode |
| Transmit Power (max) |
1W/FCC or 100mW/CE |
| Modulation |
16QAM/QPSK/BPSK |
| Video Bit Rate |
up to 12 Mbps |
| Antenna |
Omni-directional antenna |
| Video Output Level |
1+/-0.2V p-p @ 75 ohm |
| Audio Output Level |
1+/-0.2V p-p @ 600 ohm |
| AV in port |
3.5mm stereo jack |
| Monitor port |
3.5mm stereo jack |
| Dimensions |
63 x 56 x 20 mm |
| Weight |
75g |
| Power Supply |
12VDC, 1A |
| RECEIVER |
| Receiver Frequency |
2.400GHz – 2.4835GHz |
| Receiver Sensitivity |
-80dBm min |
| Antenna |
Omni-directional antenna |
| Image Processor |
MPEG 4 encode/decode |
| Video Output Level |
1+/-0.2V p-p @ 75 ohm |
| Audio Output Level |
1+/-0.2V p-p @ 600 ohm |
| AV OUT Port |
3.5mm stereo jack |
| REC. Port |
3.5mm stereo jack |
| Dimensions |
90 x 75 x 20 mm |
| Weight |
120g |
| Power Supply |
12VDC, 1A |
| SYSTEM |
| Operational Range |
up to 700 feet clear-line-of-sight |
| Operating Temperature |
10°C – 50°C (14°F – 122°F) |
|
|
|
|
|
